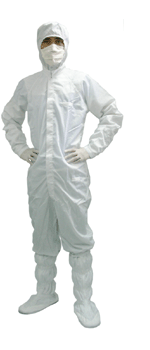

Performance™ Jumpsuit
Esco's Performance™ Standard Jumpsuit is designed for cleanrooms with stringent contamination requirements. It provides superior protection against yield-reducing particulate contamination without compromising the comfort of the operator. Available with a complete range of customizable options and accessories, the Performance™ Standard Jumpsuit is suitable for use in ISO Class 5 or ISO Class 6cleanroom environments.
Features
- Provides good contamination control
- Full length front zipper with placket
- Elastic waist band
- Convenient badge holder
- Made of synthetic polyester fabrics with modifi ed carbon fi bers
- Customizable company and employee identifi cation by heat transfer or embroidery
Specifications
- Double zips
- Attached or detached hood
Options
|
Item Code |
CRA/JS-103 |
|---|---|
|
U.S./European Sizes |
XS to 5XL |
|
Asian Sizes |
S to 4XL |
Performance™ Static Control Jumpsuit
Esco's Performance™ Static Control Jumpsuit is a second-generation jumpsuit designed for high-end industrial cleanrooms with stringent contamination and static control requirements. It provides superior protection against both yield-reducing ESD events and particulate contamination without compromising the comfort of the operator. Available with a complete range of customizable options and accessories, the Performance™ Static Control Jumpsuit is suitable for use in ISO Class 5 or ISO Class 6 cleanroom environments.
Features
- Stronger stitching for better contamination control
- Full length front zipper to prevent particulate contamination
- Convenient badge holder
- Stainless steel stud for grounding cord to replace wrist strap
- and for better conductivity performance
- Made of synthetic polyester fabrics with modified carbon fibers
- running vertically and horizontally throughout
- Customizable company and employee identification by heat transfer or embroidery
Options
- Conductive cuff
- Conductive ribbon (for sleeve-to-sleeve conductivity)
- Double zips
- Attached or detached hood
Specifications
|
Item Code |
CRA/JS-108 |
|---|---|
|
U.S./European Sizes |
XS to 5XL |
|
Asian Sizes |
S to 4XL |
Esco's Performance™ Standard Smock is designed for cleanrooms with stringent contamination requirements. It provides superior protection against yield-reducing particulate contamination without compromising the comfort of the operator. Available with a complete range of customizable options and accessories, the Performance™ Standard Smock is suitable for use in ISO Class 7 or ISO Class 8 cleanroom environments.
Features
- Provides good contamination control
- Available with front zips or buttons
- Two patch pockets (edge finish optional to prevent fraying)
- Convenient badge holder
- Optional back slits
- Customizable company and employee identification by heat transfer or embroidery
Specifications
| Item Code |
CRA/SM-100 |
|---|---|
|
U.S./European Sizes |
XS to 5XL |
|
Asian Sizes |
S to 4XL |
|
Fabrics |
PM1 (ISO Class 7/8) |
|
PM1-GD (ISO Class 7/8) |
|
|
PM1-GMR (ISO Class 7/8) |
|
|
PM2 (ISO Class 7/8) |
Performance™ Static Control Smock
Esco's Performance™ Static Control Smock is a second-generation smock designed for high-end industrial cleanrooms with stringent contamination and static control requirements. It provides superior protection against both yield-reducing ESD events and particulate contamination without compromising the comfort of the operator. Available with a complete range of customizable options and accessories, the Performance™ Static Control Smock is suitable for use in ISO Class 7 or ISO Class 8 cleanroom environments.
Features
- Stronger stitching for better contamination control
- Stainless steel stud for grounding cord to replace wrist strap and for better conductivity performance
- Single zip
- Badge holder
- Two patch pockets (optional edge fi nish to prevent fraying)
- Back slit
- Made of synthetic polyester fabrics with modified carbon fibers running vertically and horizontally throughout
- Customizable company and employee identification by heat transfer or embroidery
Options
- Conductive cuff
- Conductive ribbon (for sleeve-to-sleeve conductivity)
Specifications
|
Item Code |
CRA/SM-106 |
|---|---|
|
U.S./European Sizes |
XS to 5XL |
|
Asian Sizes |
S to 4XL |
|
Fabrics |
PM1-GD (ISO Class 7/8) |
|
PM1-GMR (ISO Class 7/8) |
|
|
PM2 (ISO Class 7/8) |
Performance™ Standard ESD Smock
Esco's Performance™ Standard ESD Smock is designed for industrial environments with static control requirements. It provides superior protection against yield-reducing ESD events without compromising the comfort of the operator.
Clothing materials can generate electrostatic charges when they come into contact with and separate from other objects and the clothing itself. These charges may discharge into sensitive components or create electrostatic fi elds that may induce charges on the human body. Although a person may be grounded, clothing is usually electrically insulated or isolated from the body.
Esco's Performance™ Standard ESD smock is made of Performance™ ESD, a proprietary conductive fabric specially designed for use in sensitive environments where static control is critical.
Features
- Special modified carbon wire mesh
- Sewn with conductive thread to increase performance
- Full length front zipper with placket or buttons
- Two patch pockets (optional edge finish to prevent fraying)
- Optional back slit
- Convenient badge holder
- Customizable company and employee identification by heat transfer or embroidery
Specifications
|
Item Code |
CRA/SM-106 |
|---|---|
|
U.S./European Sizes |
XS to 5XL |
|
Asian Sizes |
S to 4XL |
|
Fabrics |
PM1-ESD (ISO Class 7) |
Esco's Performance™ Jacket and Pants are designed for cleanrooms with stringent contamination requirements. They provide superior protection against yield-reducing particulate contamination without compromising the comfort of the operator. Available with a complete range of customizable options and accessories, Performance™ Cleanroom Jacket and Pants are suitable for use in ISO Class 6 or ISO Class 7 cleanroom environments.
Features
- Provides good contamination control
- Available with front zips or buttons
- Convenient badge holder
- Two patch pockets on jacket (optional edge finish to prevent fraying)
- One knit pocket on pants
- Elastic waist collar
- Customizable company and employee identification by heat transfer or embroidery
Specifications
|
Item Code |
CRA/JK-105 |
CRA/PN-105 |
|---|---|---|
|
Description |
Cleanroom Jacket |
Cleanroom Pants |
|
U.S./European Sizes |
XS to 5XL |
S to 4XL |
|
Asian Sizes |
S to 4XL |
|
|
Fabrics |
PM1 (ISO Class 6/7) |
PM1 (ISO Class 6/7) |
|
PM1-GD (ISO Class 6/7) |
PM1-GD (ISO Class 6/7) |
Esco Performance™ Fabrics are chosen for their superior technical characteristics and each fabric is randomly tested during production to achieve a high level of quality consistency.
Some of the tests we employ include the ISO 9290:1990 �C Falling Pendulum Method B for Tensile Strength; ISO 5082:1982-1" Grab Test for Tearing Strength; NFRP-99 for Static Decay Time from 5000V to 50V).
| MATERIAL | Performance™ 1 (PM1) | Performance™ 1 GD (PM1-GD) | Performance™ 1 GMR (PM1-GMR) | Performance™ 1 ESD (PM1-ESD) |
|---|---|---|---|---|
| Composition | 99%
Polyester + 1% Nylon carbon compound filament yarn |
98%
Polyester + 2% Nylon carbon compound filament yarn |
96%
Polyester + 4% Nylon carbon compound filament yarn |
98%
Polyester +2% Nylon carbon compound filament yarn |
| Yarn Count (Denier):WarpxWeft | 75D x 100D | 75D x 100D | 75D x 100D | 75D x 48F |
| Conductive Yarn | Conductive
70D polyamide base |
Conductive
70D polyamide base |
Conductive
70D polyamide base |
Conductive 70D/25F |
| Density (Ends/Inch) | 190 x 93 | 188 x 94 | 180 x 94 | 34 x 44 |
| Weave | 2/1 TWL (5 mm stripe) | 2/1 TWL (5 mm grid) | 2/1 TWL (2.5 mm grid) | 3 mm
Rhomb (warp knitting) |
| Width (Inch) | 60" | 60" | 60" | 70" |
| Weight (gr/m2) | 110 +/-5% | 110 +/-5% | 110 +/-5% | 215 +/-5% |
| Tensile
Strength (ISO 9290:1990-falling pendulum method B) |
Warp
(kg): 63.3 Weft (kg): 72.2 |
Warp
(kg): 63.0 Weft (kg): 70.6 |
Warp
(kg): 63.0 Weft (kg): 70.6 |
Not available |
| Tearing
Strength (ISO 5082:1982-1" grab test) |
Warp
(kg): 4.0 Weft (kg): 2.9 |
Warp
(kg): 2.5 Weft (kg): 1.9 |
Warp
(kg): 2.5 Weft (kg): 1.9 |
Not available |
| Air
Permeability (JIS L 1099-A1) |
3.8 cm3/cm2/sec | 4.0 cm3/cm2/sec | 4.0 cm3/cm2/sec | Not available |
| Friction
charges (Volts) (JIS L 1094-B) * |
45 | 40 | 18 | 275 |
| Surface
Resistivity (DIN 54345) *42%R.H.,21oC) |
106-7 ohm/sq | 106-7 ohms/sq | 104-5 ohm/sq | 106-7 ohm/sq |
| Decay
Time (NFPA-99) * (42%R.H.,21oC) |
0.01 second | 0.01 second | 0.01 second | 0.01 second |
* Measurements are taken along the conductive lines.
Colours Available
| PERFORMANCE™
1 FABRIC
|
PERFORMANCE™
1 GRID FABRIC
|
PERFORMANCE™
1 GMR FABRIC
|
PERFORMANCE™
1 ESD FABRIC
|
White
Sky Blue
Olive Green
White
Sky Blue
Olive Green
White
Sky Blue
Olive Green
White
Sky Blue
Olive Green Note: Additional colours are available upon request.
